12 RGB LED Ring

❌ Discontinued 🧪 Testing

light Unknown Model: Unknown 📅 Acquired: 2017

12 RGB LED Ring

📅Last updated:January 23, 2026(9 days ago)

Connection Types

📐 See This Display in Action

This display is featured in our interactive size comparison.

View Comparison 👀

Overview

Salvaged LED ring with 12 individually addressable RGB LEDs (SK6812 compatible)

The board features:

12 RGB LEDs
SK6812 individually addressable LEDs (similar to WS2812B)

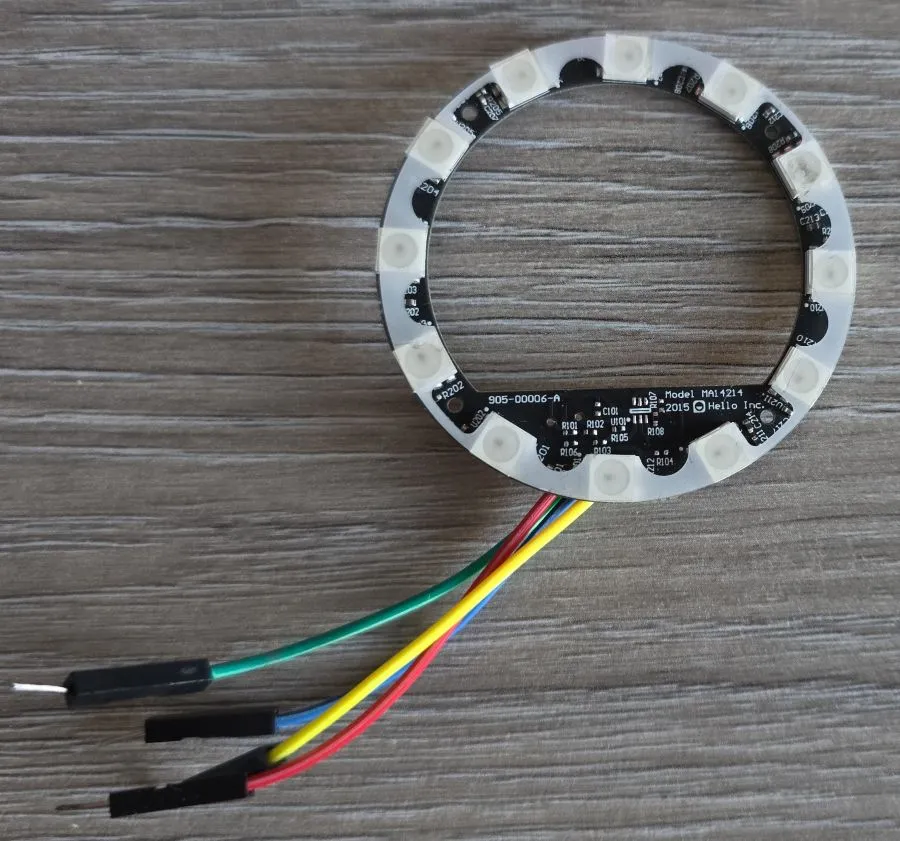

Photo of the salvaged 12 RGB LED ring

Configuration Notes

Supported via ESPHome’s NeoPixelBus Light component. Note that NeoPixelBus only works with the Arduino framework.

For ESP-IDF use ESP32 RMT LED Strip

Basic Configuration

#works with esp-idf
light:
  - platform: esp32_rmt_led_strip
    chipset: SK6812
    num_leds: 12
    rgb_order: GRB
    name: "My Hello"
    id: my_ring
    pin: GPIO17

Other Images

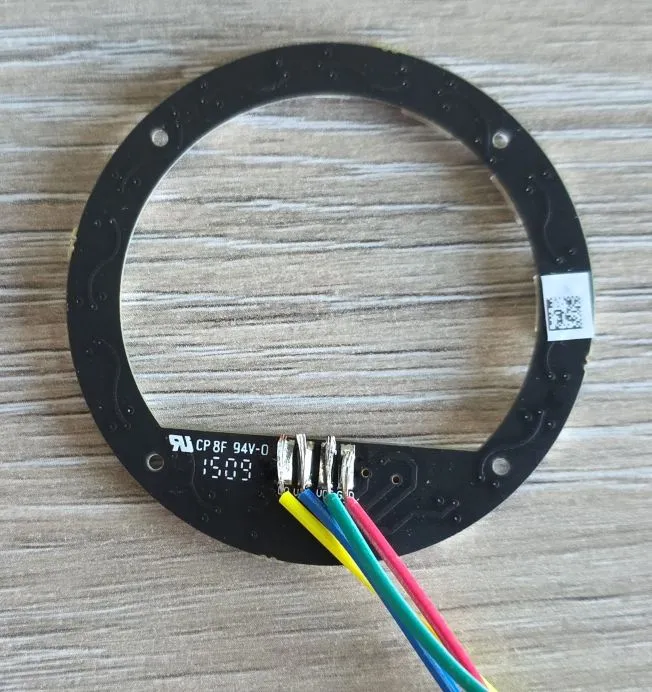

Back of the LCD Display: Photo of the 12 RGB LED ring - back
